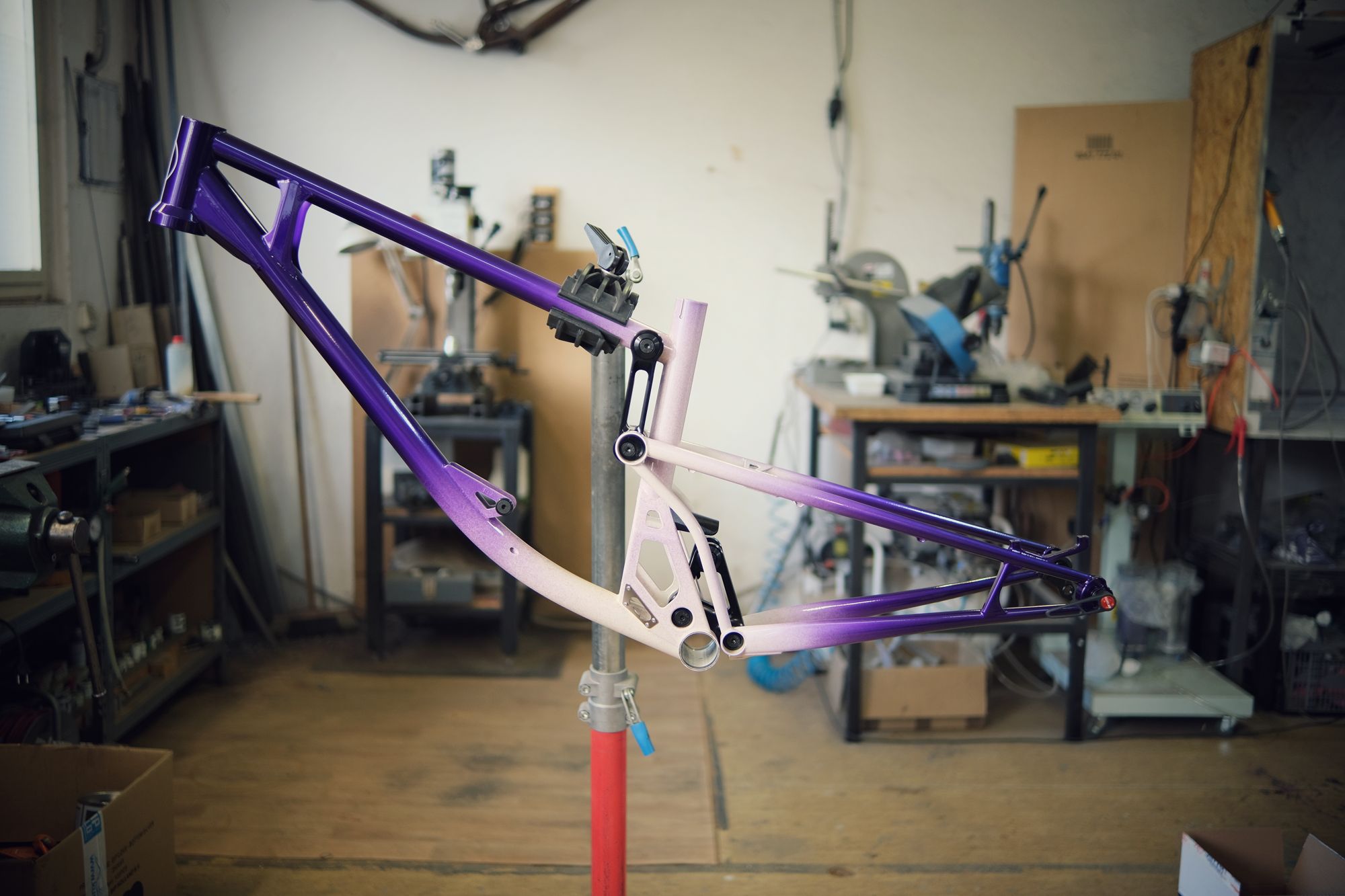

The Naosm is a no-compromise enduromachine. It is a unique blend of features from several disciplines of cycling. It takes the best from the downhill, where absorbing bumps is crucial anduphill it is no slouch either, with almost no bobbing and sharp pedalling response.

ENDuRO BOJZ,
PURE ENDURO

73.000 CZK / 2.990 EUR

SELECT GEOMETRY

27.5

mullet

I want to see charts and numbers!

SELECT FRAME SIZE

XXL

how to choose the size correctly

buy it now

write for more information!

tech spec

frame

crmo and columbus steel, travel 160mm

Recommended fork travel

150-170 MM

Shock

230X65 MM (rear travel 160 MM) 230X60 MM (rear travel 150 MM)

Front bushing

22,2X8 MM

Headset

SEMI-INTEGRATED ZS44/ZS56

Seatpost

30,9 MM internal routing

Seatpost clamp

34,9 MM

Bottom bracket

PRESSFIT 41X92 MM

Chainring

DIRECT MOUNT, MAX 36Z

Brake moun

PM 180 MM

Brake rotor

MAX 203 MM

Rear hub

BOOST 148X12 MM

Max tyre width

2,5”

Ordering Process

Each frame is made to order. You will be notified by email of the progress of the build andthe completion date. After placing your order, you will receive an advancepayment request of 50% of the frame price, which is required to start themanufacturing process. The remaining amount including shipping is to be paidupon completion of the frame.

Included in the price

The frame with SRAM's Universal Derailleur Hanger, DT Swiss rear axle and spare chainguide

NOT included in the price

Shipping and custom fees. Please check withyour country's customs regulations.

Delivery period

The delivery date is approximately 2-3months from receiving the deposit. You will be notified of any delays. Themanufacturing time depends on the number of orders in the queue.

Shipping

Warranty

I stand behind my frames and I wanteveryone to enjoy their Zoceli frame for as long as possible, which is why Ioffer a lifetime warranty.The lifetime warranty covers allmanufactured and welded parts of the frame, such as the front and reartriangles and the arm rockers.A limited 2-year warranty applies tothe paintwork, rear axle and joining material.

MORE ABOUT WARRANTY

SHOW Gallery

SELECT GEOMETRY

XXL

(LENGHT MM, AXLE 160MM)

REACH

445

465

485

505

Seat tube length

380

405

430

455

Top tube length

569

589

609

629

Wheelbase

1214

1234

1254

1274

Seatpost max insert

210

235

260

285

Stack

608

Chainstay

430

Head tube angle

64,5°

Seat tube angle

78,4°

Head tube length

120

BB Drop

BB Height

345

Fork offset

SHOCK

230x65 - rear travel 158 mm
230x60 - rear travel 148 mm

Weight
(without shock and rear axle)

±4100g

XXL

(LENGHT V MM, AXLE 160MM)

REACH

445

465

485

505

Seat tube length

380

405

430

455

Top tube length

582

602

622

642

Wheelbase

1222

1242

1262

1282

Seatpost max insert

210

235

260

285

Stack

645

Chainstay

435

Head tube angle

64,5°

Seat tube angle

78°

Head tube length

120

BB Drop

BB Height

345

Fork offset

SHOCK

230x65 - rear travel 160 mm
230x60 - rear travel 150 mm

Weight
(without shock and rear axle)

±4100g

XXL

(LENGHT V MM, AXLE 160MM)

REACH

445

465

485

505

Seat tube length

380

405

430

455

Top tube length

582

602

622

642

Wheelbase

1217

1237

1257

1277

Seatpost max insert

210

235

260

285

Stack

645

Chainstay

430

Head tube angle

64,5°

Seat tube angle

78,4°

Head tube length

120

BB Drop

16,5

BB Height

345

Fork offset

SHOCK

230x65 - rear travel 158 mm
230x60 - rear travel 148 mm

Weight
(without shock and rear axle)

±4100g

features

Internal cable routing for the seatpost, shifter and brake which is every technician’s dream. Small stainless steel tubes ensure that Bowden cables or hoses always find their respective holes.

The frame consists of two rigid triangles connected by EN AW-6060 aluminium alloy rockers. This design ensures high rigidity and weight saving.

Proven and widely available SRAM UDH.

All main suspension pins are made of EN AW-7075 aluminium alloy and fitted with a V-coil thread insert. No more thread stripping! All screws are stainless steel and are widely available from any fastener supplier.

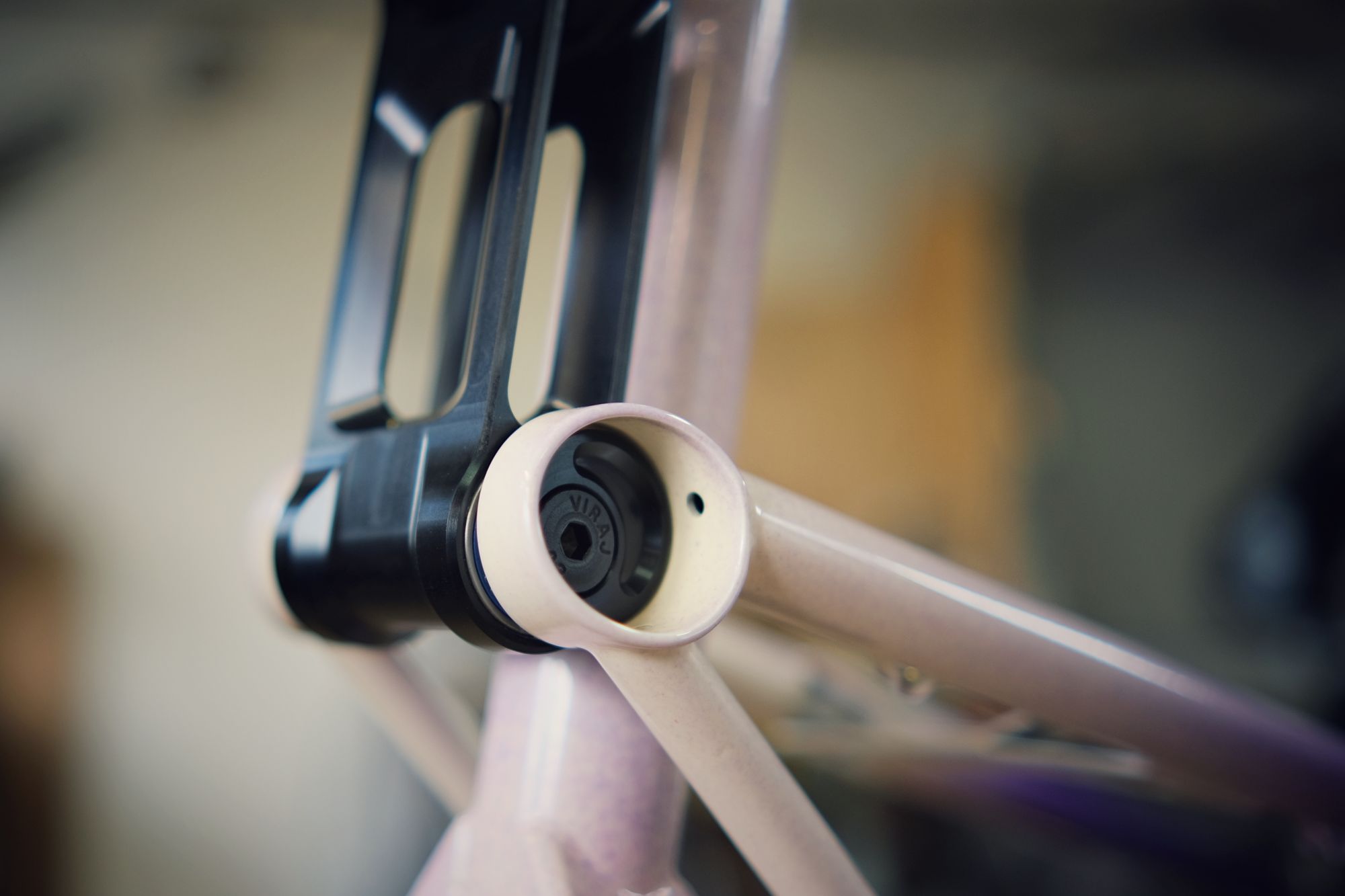

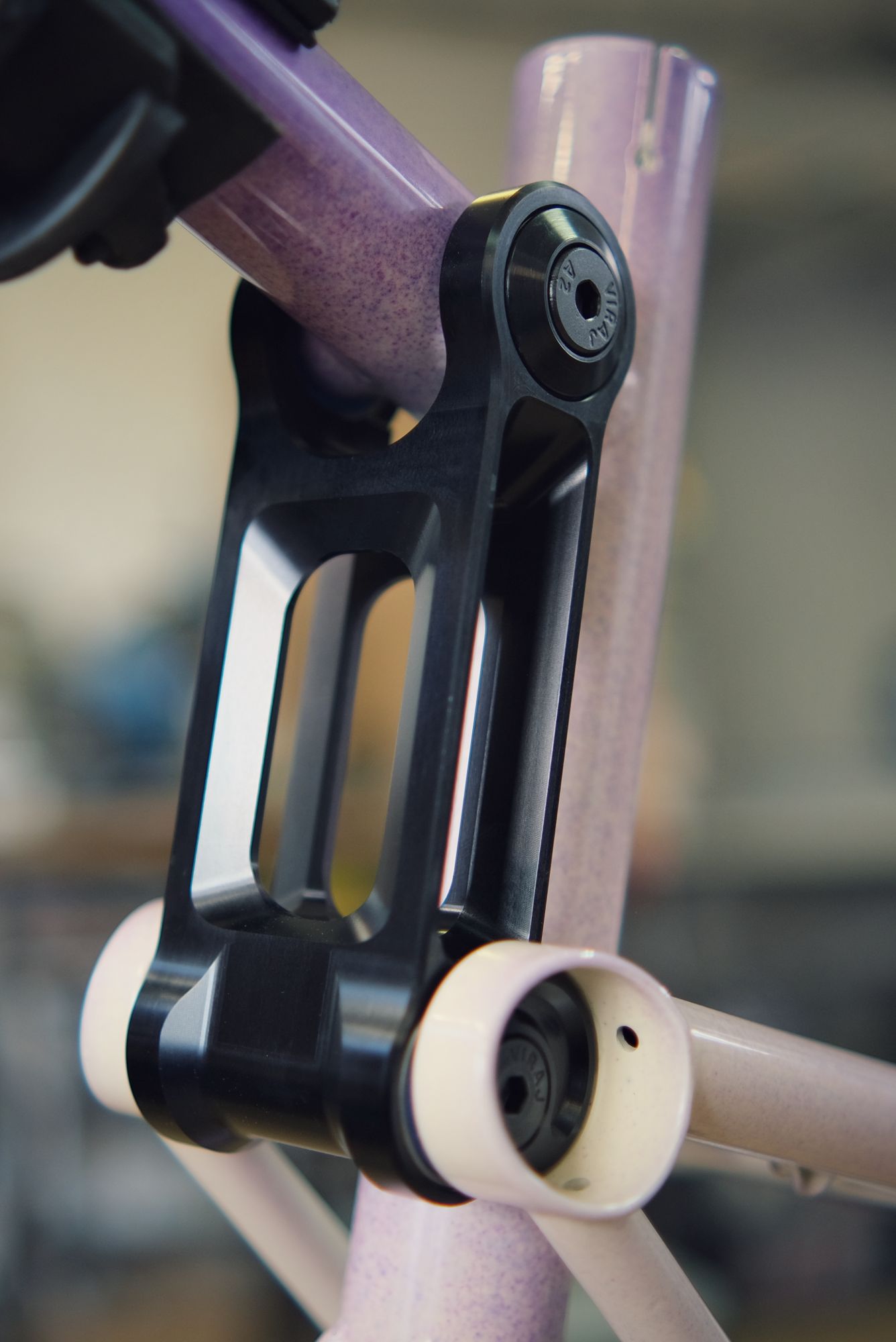

The lower rocker arm, which is subjected to the greatest load, has double bearings. As a result, the bearings have a longer service life and provide additional rigidity. There are 14 identical 6902-2RS bearings on the frame.The rocker also features double bearings that replace the standard friction bushing in the shock absorber. This solution ensures the best possible sensitivity.

Crack a beer whenever you fancy using the bottle opener located on the frame. Cheers!

The integrated leash keeps the chain where it should be.

Progressive Ride

High progressiveness ensures optimumuse of suspension travel for any given situation, be it in a bike park, on a DHtrack, flowtrail or in the leaf litter on a singletrack. The Naosm is highlysensitive at the start of the travel and then stiffens very quickly. No jumpwill ever be a challenge for you.

The curve traced out by the rear wheelmeans that the suspension pulls the chain as little as possible and ismaximally independent of the rear brake.

Coatings and Finishes

Powder coat

Clear powder coat

chrome plating

custom paint

(no extra charge)

THE MOST DURABLE SURFACE THAT CAN BE! ALL POSSIBLE LOOKS ARE AVAILABLE SUCH AS GLOSSY, MATTE, METALLIC OR CHANGING LIKE A CHAMELEON. FIND YOUR COLOR AT PRISMATIC POWDERS.COM

(no extra charge)

allows the welding heat tint to showthrough and all the frame details remain visible. Unfortunately, sooner orlater the frame will begin to rust slightly underneath the finish - there is noway of preventing this. This slight corrosion does not affect the strength ofthe frame.

(extra charge 220 eur)

a tough anti-corrosivelayer of chrome on the steel frame with a distinctive mirror-like lustre.

(extra charge)

IF YOU WANT A FRAME THAT NO ONE REALLY HAS, IT IS POSSIBLE TO MAKE YOUR OWN CUSTOM LOOK!

choose your own shade

colour palette

Check all the photos here or on Instagram and get inspired. The color can also be specified during the order. all colors from the offer prismaticpowders.com are available.

The Zoceli frames match exceptionally well with muted pastel colours :)

Please do note that the desired shadedisplayed on your screen may not precisely match the actual colour.

available colours here!
